APC Back-UPS 575VA, AVR,120V, LAM

APC Back-UPS 575VA, AVR,120V, LAM

Battery Backup with Automatic Voltage Regulation for Electronics and Computers

BX575U-LM Features

APC Back-UPS 575VA, AVR,120V, LAM

  • Audible alarms

    Provides notification of changing utility power and UPS power conditions

  • Battery failure notification

    Provides early-warning fault analysis on batteries enabling timely preventive maintenance

  • Boost and Trim Automatic Voltage Regulation (AVR)

    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

  • Cold-start capable

    Provides temporary battery power when the utility power is out.

  • Disconnected battery notification

    Warns when a battery is not available to provide backup power.

  • Overload protection

    Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.

  • Resettable circuit breaker

    Easy recovery from overloads; no need to replace a fuse.

  • Telephone dataline surge protection

    Provides protection of connected equipment from power surges traveling on telephone lines.

  • USB connection

    Use your PC to access additional power protection and management features for your UPS via a USB Port.

Back-UPSFeatures & Benefits

Marketing Features

  • Battery-protected and surge-only outlets

    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment


  • Battery and surge protected outlets

    Back up and protect your hardware and data during power outages, surges and spikes.

  • Surge only outlets

    Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.


  • Automatic self-test

    Periodic battery self-test ensures early detection of a battery that needs to be replaced.

  • Battery failure notification

    Provides early-warning fault analysis on batteries enabling timely preventive maintenance

  • Intelligent battery management

    Maximizes battery performance, life, and reliability through intelligent, precision charging.


  • Audible alarms

    Provides notification of changing utility power and UPS power conditions

  • LED status display

    Quickly understand unit and power status with visual indicators.


  • Safety-agency approved

    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Product Distribution

Anguilla , Netherlands Antilles , Aruba , Barbados , Bermuda , Bahamas , Belize , Colombia , Costa Rica , Dominican Republic , Ecuador , Falkland Islands , Guatemala , Honduras , Haiti , Jamaica , Mexico , Nicaragua , Panama , Puerto Rico , Reunion , El Salvador , Turks And Caicos Islands , Togo , Venezuela , U.S. Virgin Islands



  • Output power capacity: 320Watts / 575VA

  • Max Configurable Power (Watts): 320Watts / 575VA

  • Nominal Output Voltage; 120V

  • Efficiency at Full Load; 70.0 %

  • Output Frequency (sync to mains): 50/60 Hz +/-1 Hz

  • Output Frequency (not synced): 50/60 Hz +/-1 Hz

  • Topology: Line Interactive

  • Waveform type: Square wave

  • Maximum Output Current: 12

  • Output Connections

    (2) NEMA 5-15R (selector_surgetitle)

    (4) NEMA 5-15R (Battery Backup)

  • Output Voltage Tolerance: +/-1% static and +/- 5% at 100% load step

  • Transfer Time: 6ms typical : 10ms maximum


  • Nominal Input Voltage: 120V

  • Input frequency: 47 - 63 Hz

  • Input Connections: NEMA 5-15P

  • Cord Length: 1.52meters

  • Input voltage range for main operations: 78 - 150V

  • Number of Power Cords: 1

  • Efficiency at Full Load: 70.0 %

  • Type of Input Protection Required: 3-pole breaker

  • Maximum Input Current: 12.0A

Batteries & Runtime

  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Included Battery Modules: 1

  • Typical recharge time: 6hour(s)

  • Replacement Battery: APCRBC110

  • Expected Battery Life (years): 3 - 5

  • Battery Volt-Amp-Hour Capacity: 78

Communications & Management

  • Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators

  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating: 273Joules

  • Data Line Protection: RJ-11 Modem/Fax protection


  • Maximum Height: 278mm , 27.85cm

  • Maximum Width: 160mm , 16.0cm

  • Maximum Depth: 88mm , 8.85cm

  • Net Weight: 5.2kg

  • Shipping weight: 5.4kg

  • Shipping Height: 399mm , 39.9cm

  • Shipping Width: 215mm , 21.5cm

  • Shipping Depth: 128mm , 12.8cm

  • Color: Black

  • Master Carton Units: 2.0

  • Master Carton Weight: 11.9

  • SCC Codes: 1073130431009 6


  • Operating Environment: 0 - 40 °C

  • Operating Relative Humidity: 0 - 95 %

  • Operating Elevation: 0-3000meters

  • Storage Temperature: -15 - 45 °C

  • Storage Relative Humidity: 0 - 95 %

  • Audible noise at 1 meter from surface of unit: 45.0dBA


  • Approvals: UL 1778

  • Standard warranty: 3 years repair or replace

Sustainable Offer Status

  • RoHS: Compliant

  • REACH: REACH: Contains No SVHCs

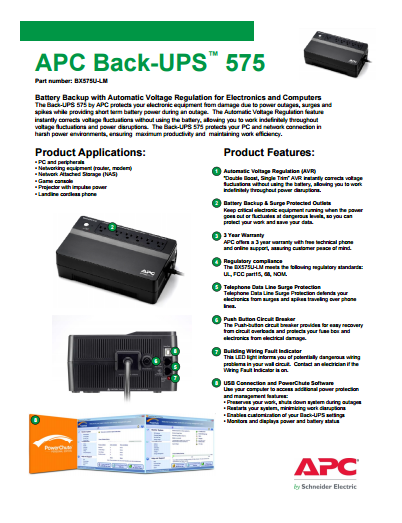

Product Brochure
