Line-R 1200VA Automatic Voltage Regulator

Line-R 1200VA Automatic Voltage Regulator

Line-R 1200VA Automatic Voltage Regulator

Automatic voltage regulation for protection against brownouts and overvoltages

Line-R Features & Benefits

Convenience

  • Transformer Block Spacing

    Connect bulky transformer block plugs without covering up other outlets.

  • Status Indicator LED's

    LED status indicators for each phase and an audible alarm provide immediate failure notification when surge suppression circuitry has been damaged by a heavy strike or surge.

Protection

  • Resettable circuit breaker

    Easy recovery from overloads; no need to replace a fuse.

  • Automatic Voltage Regulation (AVR)

    Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

  • Lightning and Surge Protection

    To prevent damage to your equipment from electric power surges and spikes.

Product Distribution

Aruba , Barbados , Belize , Canada , Colombia , Costa Rica , Dominican Republic , Ecuador , Guatemala , Guyana , Honduras , Jamaica , Mexico , Nicaragua , Panama , Puerto Rico , El Salvador , Trinidad and Tobago , United States , Venezuela

N/A

Output

  • Output power capacity: 1.2 KWatts / 1.2 kVA

  • Max Configurable Power (Watts): 1.2 KWatts / 1.2 kVA

  • Nominal Output Voltage: 120V

Input

  • Nominal Input Voltage: 120V

  • Input frequency: 50/60 Hz

  • Input Connections: NEMA 5-15P

  • Cord Length: 1.98meters

  • Number of Power Cords: 1

Surge Protection and Filtering

  • Surge energy rating: 680 Joules

Physical

  • Maximum Height: 116mm , 11.6cm

  • Maximum Width: 214mm , 21.4cm

  • Maximum Depth: 141mm , 14.1cm

  • Net Weight: 4.4kg

  • Shipping weight: 4.7kg

  • Shipping Height: 175mm , 17.5cm

  • Shipping Width: 273mm , 27.3cm

  • Shipping Depth: 207mm , 20.7cm

  • Color: Beige

  • Master Carton Dimensions (Length x Width x Height): 425mm

  • Master Carton Units: 4.0

  • Master Carton Weight: 19.55

  • Units per Pallet: 64.0

  • SCC Codes: 1073130419791 8

Environmental

  • Operating Environment: 0 - 40 °C

  • Operating Relative Humidity: 5 - 95 %

  • Operating Elevation: 0-3000meters

  • Storage Temperature: -25 - 65 °C

  • Storage Relative Humidity: 5 - 95 %

  • Storage Elevation: 0-15000meters

Conformance

  • Approvals: cUL Listed, FCC Part 15 Class B, NOM, UL 1012

  • Equipment protection policy: Lifetime : $25000

  • Standard warranty: 2 years repair or replace

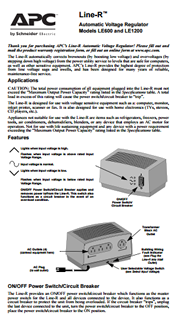

Product Brochure
